FR7000

Outstanding Performance

Equipped with the advanced Impinj E710 chip, it can achieve rapid read rates of up to 1000 tags per second. Its excellent performance allows precise reading of fast-moving RFID tags with an accuracy rate of 99.7%

Easy to Deploy

The built-in antenna and compact design not only provide easy and flexible installation across various scenarios,
but also minimizes power loss, enhancing signal transmission efficiency.

Resim
Hang the Braket
Resim

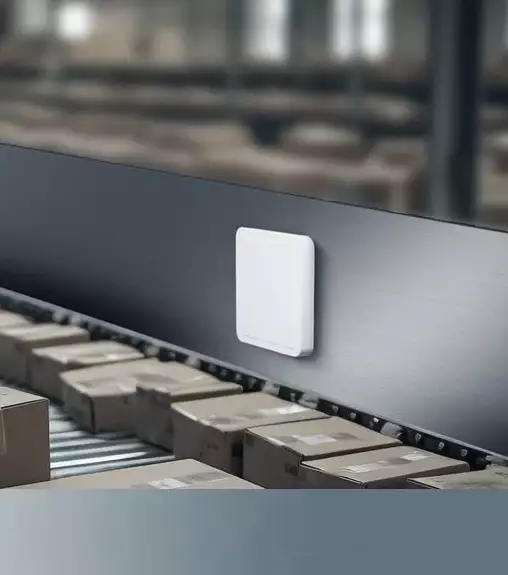

Mount on Production line
Resim

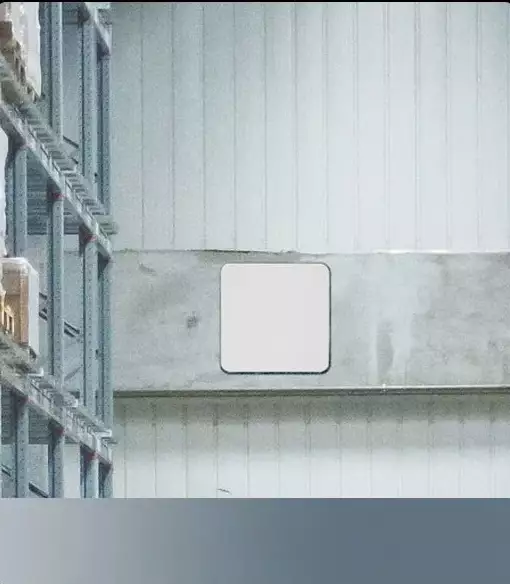

Mount on the Wall

Extensive Interfaces, Flexible Transmission

Seamlessly integrating RS232 and RJ45 interfaces while offering a variety of communication options including RS485,

Wiegand, GPIO, and USB2.0, it delivers unmatched compatibility, effortlessly adapting to any application scenario.

Versatile Applications

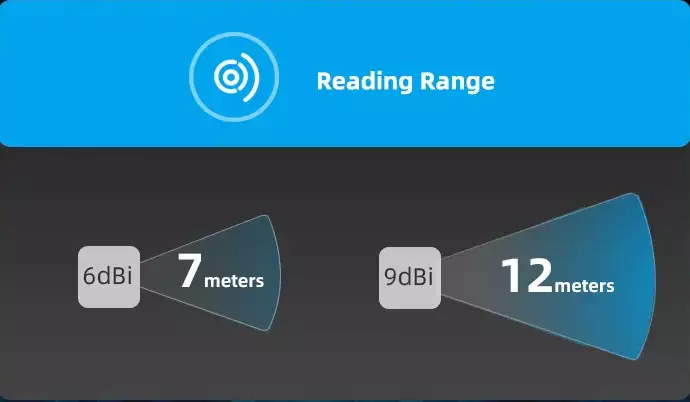

Optional 6dBi and 9dBi circular polarized antennas with adjustable output power, provides two different read ranges of 7 meters (6dBi) and 12 meters (9dBi) for a wide range of industry applications.

resim
resim

Production Management

icon Annoying Problems

 FR7000 Solutions

icon
Variety of Tag Types
icon
Equipped with a high-performance RFID modüle, the FR7000 efficiently and flexibly reads various types of tags.
icon
Limited Scanning Range
icon
The FR7000 utilizes Range Control technology to support a wide reading range.
icon
Frequent Misreads
icon
Incorporating iTracking, an AI-based tag tracking algorithm the FR7000 filters out irrelevant tags,ensuring smooth operation on production lines.

Warehouse Management

icon Annoying Problems

FR7000 Solutions

icon
Manual Inventory Counting is Time-Consuming and Labor-Intensive
icon
By installing the FR7000 at warehouse entry/exit points, it enables rapid batch reading of incoming and outgoing goods, updating inventory information in real-time.
icon
Inaccurate Inventory Results
icon
The FR7000 accurately reads item information during stocktaking, improving inventory accuracy and effiency.
icon
Low Efficiency in Locating Items Within Warehouses
icon
When mounted on forklifts, the FR7000 facilitates quick and precise picking and relocation operations, boosting operational efficiency.

Vehicle Management

icon Annoying Problems

FR7000 Solutions

icon
Slow Vehicle Identification for Entry and Exit
icon

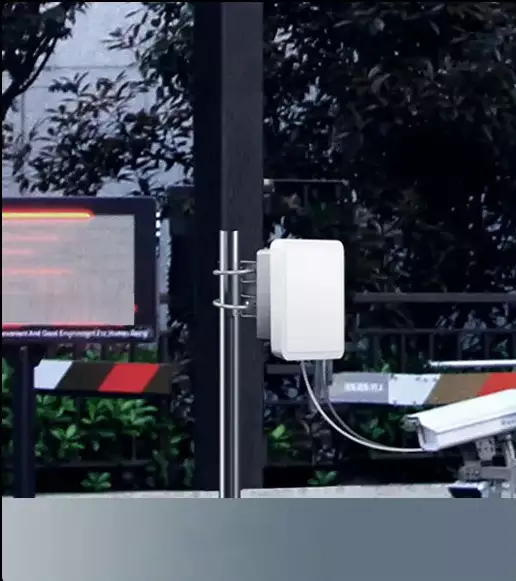

Installed at parking entry/exit points, the FR7000 quickly reads vehicle information for efficient access control.
icon
Difficult Vehicle Management
icon
The FR7000 transmits read data in real-time to the management system, allowing the system to determine vehicle clearance for effective traffic control.
icon
Parking Payment Delays Cause Congestion
icon
The FR7000 swiftly and accurately verifies vehicle information and owner identity, enabling fast passage.

Attendance Management

icon Annoying Problems

FR7000 Solutions

icon
Challenging Personnel Access Control
icon
Installed at construction site entry points, the FR7000 precisely reads RFID tags on workers' helmets for attendance tracking and identity verification.
icon
Difficulty in Real-Time Personnel Counting
icon
The FR7000 uploads information to the management system in real-time, allowing for efficient attendance tracking.
icon
Complex and Time-Consuming Management Tasks
icon
The FR7000 enables smart attendance management, eliminating the need for manual registration and reducing labor costs.

Industrial-grade quality

Constructed with a plastic and aluminum alloy housing and an industrial-grade dustproof and waterproof design, this product is resilient against dust, oil, and moisture, making it suitable for demanding work environments.

Industrial-grade dustproof
and waterproof
resim
Aluminum alloy casing with
superior heat dissipation
resim

FR7000

Dimensions
Dimensions

257mm×257mm×52mm(9dBi)/ 130mm×130mm×50mm(6dBi)
Weight: 1800g (9dBi)/ 600g(6dBi)

Frequency
Frequency

860～960MHz
(Adjustable to meet the requirements of different countries or regions)

Protocol
Protocol

ISO18000-6C(EPC C1G2)

RF Output
RF Output

0~30dBm(adjustable)

Read Range
Read Range

Over 7m(6dBi)/12m(9dBi)

Power
Power

+9V power supply,
POE power supply(optional)

Interface
Interface

Support RS232, RJ45; optional RS485,
Wiegand, GPIO, USB2.0, etc.

Antenna
Antenna

Optional circularly polarized antenna: 6dBi/9dBi

Certification
Protection

IP67

Environmental
Environmental

Operating Temp.: -10 ~ +55°C
Storage Temp.: -20 ~ +75°C
Humidity: 5%RH ~ 95%RH(No condensation)
ESD: +/-15kv Air; +/-8kv contact

* Please note that this introduction will be adjusted with the product updates, and the information is subject to change without prior notice.
