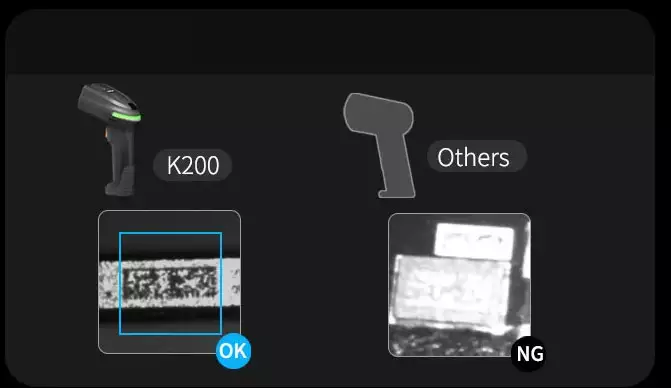

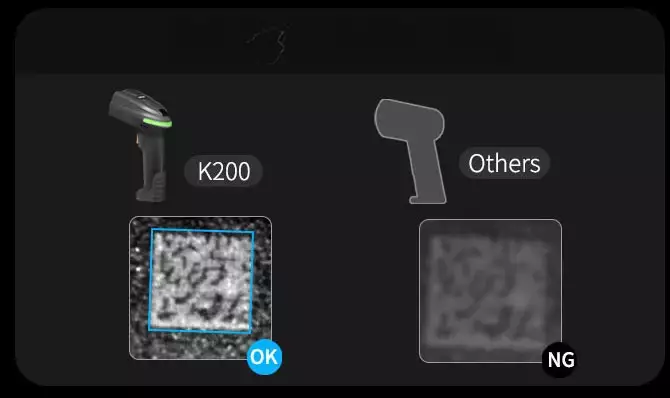

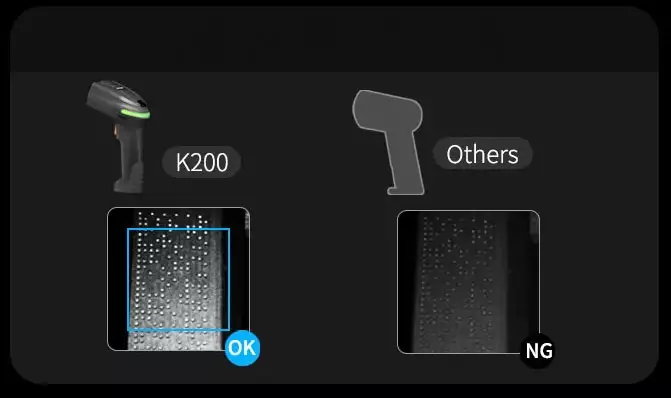

Featuring a Professional Scanning Engine and a 1280×1080 px High-Pixel Sensor, get easy aquisition of DPM codes on any surfaces with the marking methods like laser engraving, dot peening, chemical etching, and ink marking, plus any 1D/2D barcodes.
Switchable lighting system in red and white. Automatically adjust it based on barcode types and surface including low-contrast, reflective, curves and different backgrounds.
Support various connection options including USB-HID, USB virtual serial port, and RS232.
Plug to use, and compatible with Windows XP/7/8/10, Android, Linux, etc.
Withstand drops of up to 1.8 meters, IP54 dust and water proof, designed to thrive in any harsh environments.
Real-time scanning feedback through vibration motor, buzzer, and LED reminder, ensuring clear feedback even in noisy environments.
Ergonomically designed for comfort and efficiency during extended use.
Widely applied in 3C electronics manufacturing, automotive components manufacturing, pharmaceutical production, and more.
1280*1080,
1.3MP,
CMOS,
60 frames per second
Warm white LED & red LED
650 nm laser
72mm*98mm *186mm
Weight: 200g
Roll angle 360°, pitch angle ±60° ,
skew angle ± 60°
≧3mil
Vibration motor, buzzer,
and LED reminder
1D: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1-128,ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5,Industrial 2 of 5,Matrix 25, Standard 25, Codabar,MSI/MSI PLESSEY, GS1 DataBar etc.
2D: QR Code, Data Matrix, PDF417 etc.
IP54
1.8m drop resistance
Operating temperature: -20~50°C
Storage temperature: -40~70°C
Humidit y: 5%~95%(non-condensing)
Ambient light immunity: 0~100000 LUX
ESD: ±16kV air discharge, ±8kV direct discharge
